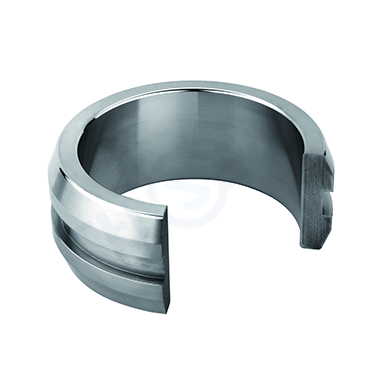

IX Series01

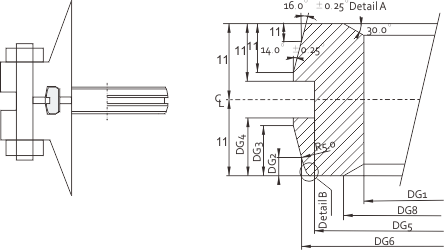

表九密封环及其b.2-dimensions

DN	NPS	IX  size	Dg1  mm	DG2  mm	DG3  mm	DG4  mm	DG5  mm	DG6  mm	DG7  mm	DG8  mm	HG1  mm	HG2  mm	HG3  mm	HG4  mm	HG5  mm	RG1  mm	Weight   kg
15	1／2	IX15	22.2	27.91	28.46	28.66	27.47	29.14	30.19	24.7	0.35	1.20	3.30	3.8	10.00	0.5	0.02
20	3／4	IX20	27.2	32.93	33.47	33.67	32.48	34.16	35.20	29.7	0.35	1.20	3.30	3.8	10.00	0.5	0.03
25	1	IX25	34.2	39.95	40.49	40.69	39.50	41.18	42.22	36.7	0.35	1.20	3.30	3.8	10.00	0.5	0.03
40	1 1／2	IX40	49.3	55.84	56.38	56.58	55.34	57.11	58.21	51.9	0.35	1.27	3.48	4.0	10.56	0.5	0.05
50	2	IX50	61.3	68.43	69.08	69.32	67.92	69.89	71.13	64.4	0.42	1.41	3.89	4.5	11.78	0.6	0.08
65	2 1／2	IX65	74.4	82.14	82.79	83.03	81.52	83.69	85.05	77.8	0.42	1.56	4.28	4.9	12.98	0.6	0.12
80	3	IX80	89.5	97.74	98.49	98.77	97.09	99.47	100.96	93.3	0.49	1.71	4.70	5.4	14.24	0.7	0.17
100	4	IX100	115.7	125.17	126.04	126.36	124.44	127.15	128.85	120.1	0.56	1.94	5.34	6.2	16.19	0.8	0.28
125	5	IX125	142.0	152.66	153.64	154.00	151.87	154.87	156.75	146.7	0.63	2.15	5.92	6.8	17.94	0.9	0.42
150	6	IX150	170.2	182.17	183.25	183.66	181.32	184.61	186.66	175.4	0.70	2.36	6.48	7.5	19.64	1.0	0.62
200	8	IX200	220.5	233.46	234.66	235.10	232.45	236.19	238.54	226.5	0.77	2.68	7.38	8.5	22.36	1.1	0.99
250	10	IX250	274.9	292.64	294.05	294.57	291.57	295.78	298.42	281.7	0.91	3.02	8.31	9.6	25.20	1.3	1.85
300	12	IX300	325.0	341.13	342.65	343.21	339.97	344.52	347.36	332.5	0.98	3.26	8.96	10.4	27.15	1.4	2.18
350	14	IX350	357.1	373.87	375.38	375.94	372.58	377.34	380.32	365.0	0.98	3.42	9.39	11.0	28.46	1.4	2.60
400	16	IX400	409.3	427.36	428.98	429.58	425.98	431.08	434.27	417.9	1.05	3.66	10.05	11.9	30.47	1.5	3.43
450	18	IX450	459.4	478.90	480.63	481.27	477.45	482.85	486.23	468.6	1.12	3.87	10.65	12.7	32.28	1.6	4.38
500	20
